Ammer Abdulkadir : Week 6 waffle construction







  • CONCEPT:

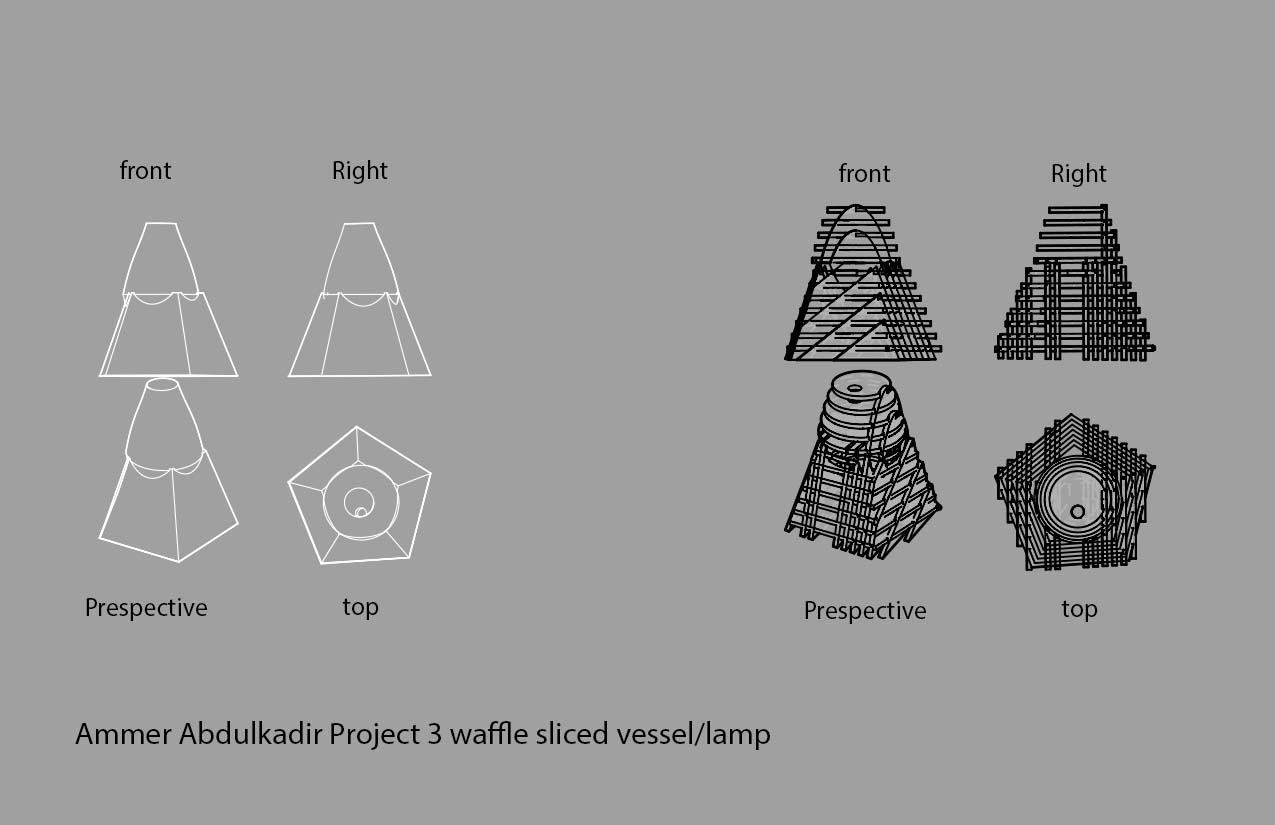

  •  The inspiration for project 3 design was a sci-fi rocket engine.  The concept of the design is a opened conned shape chamber engine with a narrow exhaust. The vessel object will act as the core and the reason for the blue exhaust. The rocket engine will include a blub that’s cast light in an upward position.  The vessel object is shown by the following image:




· TECHNIQUES:

·          In order to make my design I used a few tools and the scripts provided. The first step in the solid design process was to use the truncate pyramid command to create the top shape with a desirable height and scale. The next step was to create the inner section, and this was accomplished by using the cylinder command as well as the taper command. The third step was to use the mirror command to copy this shape. In the fourth step,  a boolean2object command  to find/ join the two objects into one. This step was repeated with first object and the newly formed object. The shapes of the holes was made by using the command cylinder and the command torus(duplicated ). The final steps required a combination of the following commands: explode, split/Boolean2object, join..









Materials :  The model using a wood texture as the selected material ( an approximation to MDF wood/ fine grain.  For the vessel object I selected the acrylic  glass ( blue color/gem). The base of the lightbulb was a black color metal/plastic. For the lightbulb I used a glass texture with a blue  hue and a spotlight.








due some missing pieces on the y axis , only the top part of the vessel could be made to match  the renderings
